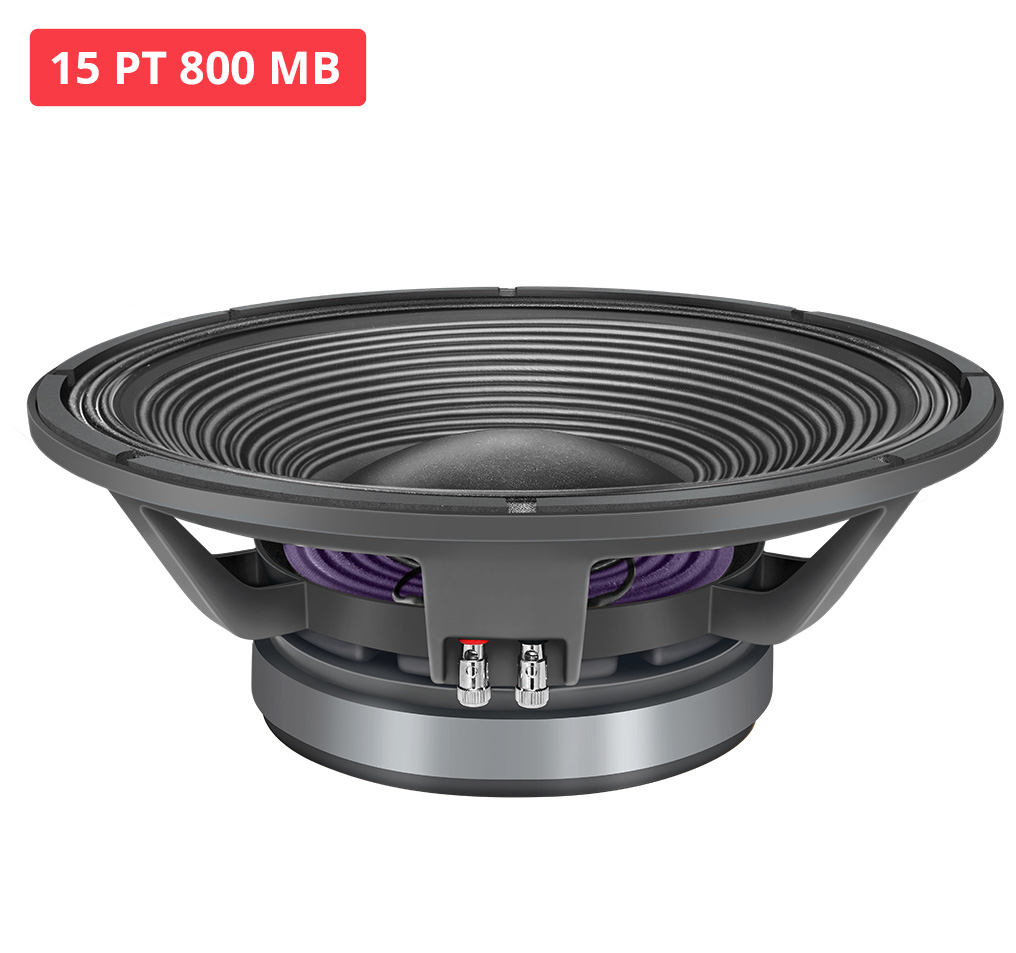

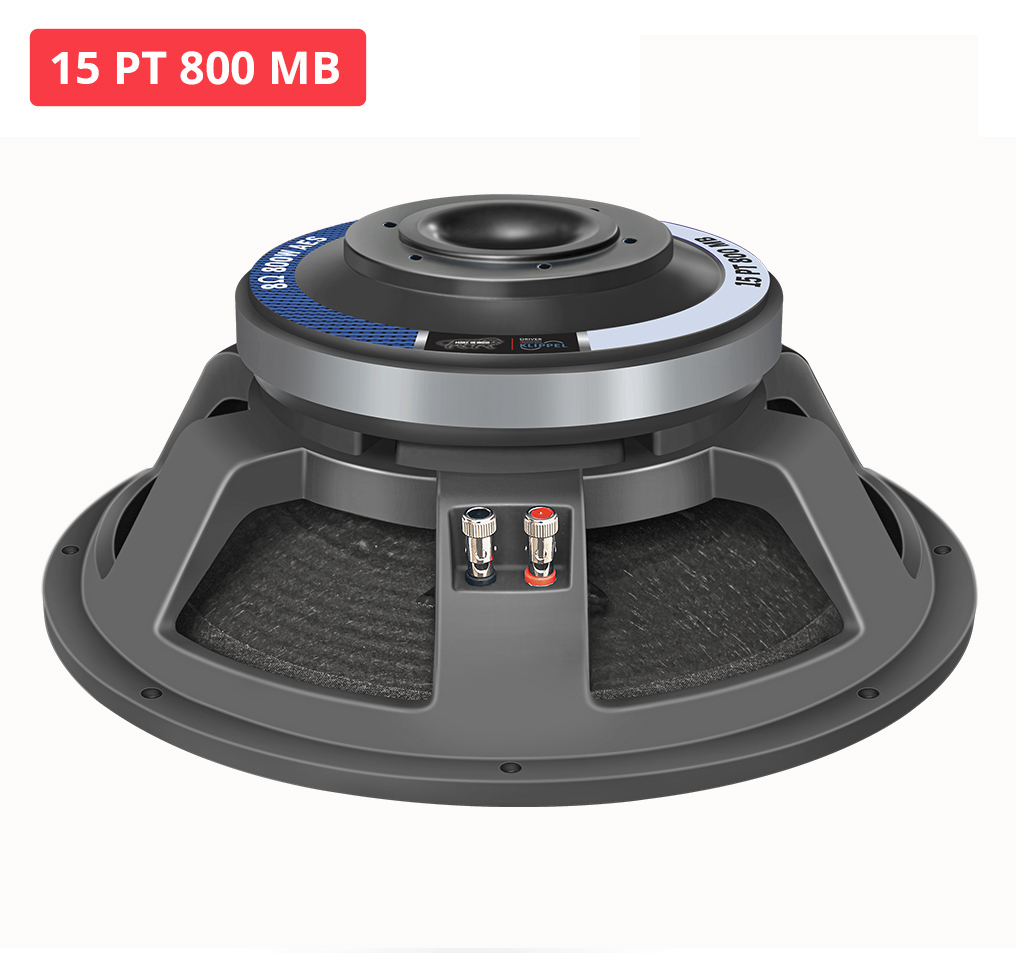

15 PT 800 MB
15 PT 800 MB is a highly effi cient mid bass speaker which can reproduce 104 dB sound level at around 1 Khz and can go as low as 47 Hz. In 15" category, we believe it has sharpest mid. Suitable for Vented/Bass Refl ex Enclosure.
| Key Features | |
| Program Power | 1600 W |
| Voice Coil | 99.3 mm (4 in) |
| Response | 55-3000 Hz |
| Sensitivity 1W/1M | 96 dB |
Specification
| Nominal Diameter | 388 mm |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling(AES) | 800 W |
| Program Power | 1600 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 55-3000 Hz |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 99.3 mm ( 4 in) |
| Winding Material | CCAR |
| Former Material | GLASS FIBRE |
| Winding Type | OUTSIDE |
Parameters
| Resonant Frequency | FS | 54 Hz |
| DC Resistance | Re | 5.2 Ω |
| Electrical Q | Qes | 0.48 |
| Mechanical Q | Qms | 13.06 |
| Total Q | Qts | 0.47 |
| Compliance Equivalent Volume | vas | 72.95 Ltrs |
| Peak Diaphragm Displacement Volume | Vd | 0.41 Ltrs |
| Effective Surface Area of Cone | Sd | 918.63 cm^2 |
| Reference Efficiency | ƞo | 2.26% |
| Moving Mass including air load | Mms | 142.10 gms |
| Motor Strength | Bl | 22.91 T-m |
| Voice Coil Inductance @ 1 KHz | Le | 0.71 mH |
| Efficiency Bandwith Product | EBP | 113 Hz |
| Voice Coil Overhang | Xmax | ±5.90 mm |
Mounting Info
| Overall Diameter | 388 mm |
| Bolt Circle Diameter | 373 mm |
| Baffle Cutout Diameter | 358 mm |
| Depth | 151 mm |
| Flange and Gasket Thickness | 13 mm |
| Gross Weight | 16 Kgs |
Recone Kit
| Recone Kit Number | REC15PT800MB |
